JAW CRUSHER

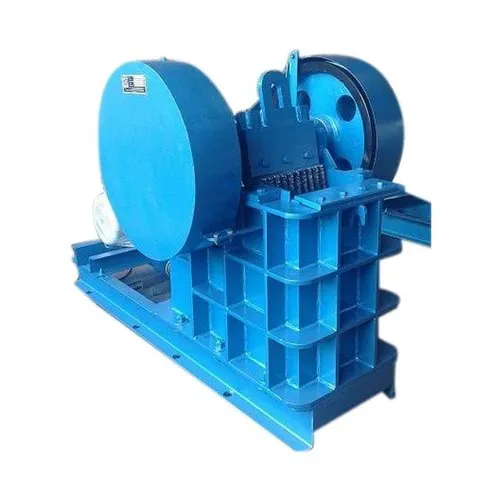

JAW CRUSHER SHJ-600CT
The machine is fabricated on a very heavy channel base duly welded & reinforced with additional plates wherever required. The housing is of 16mm & 25mm plates. The jaw are of Megnese casted plate & move on the shaft.
| S.NO | PARTICULARS | COMPLIANCE | |
|---|---|---|---|
| SHJ600CT A | SHJ600CT B | ||
| 1 | MATERIAL OF CONSTRUCTION | MILD STEEL PLATE 16 AND 25MM | MILD STEEL PLATE 16 AND 25MM |
| 2 | MATERIAL OF JAW | MEGENESE | MEGENESE |
| 3 | JAW SIZE | 15X12” | 20X18" |
| 4 | FLY WHEELS SIZE ON BOTH SIDE | 30" | 36" |
| 5 | LOAD | 10HP 440 VOLT | 20HP 440 VOLTS |
| 6 | FEED SIZE | 200MM MAX. | 250MM MAX. |
| 7 | OUTPUT SIZE | 50MM OR BELOW ADJUSTABLE | 50MM OR BELOW ADJUSTABLE |
| 8 | CAPACITY | 1-1.5TON DEPENDING ON SIZE AND QUALITY OF MATERIAL. | UPTO 4-5 TON/HR |
| 9 | FEEDING HOPPER | FEEDING MANUALY AND HOPPER OF CAPACITY 100 KG APPROX. WILL BE PROVIDED. | MANUALLY OR BY CONVEYOR BELT. |
| 10 | SAFETY GAURD | FITTED ON BOTH SIDE | FITTED ON BOTH SIDE |
