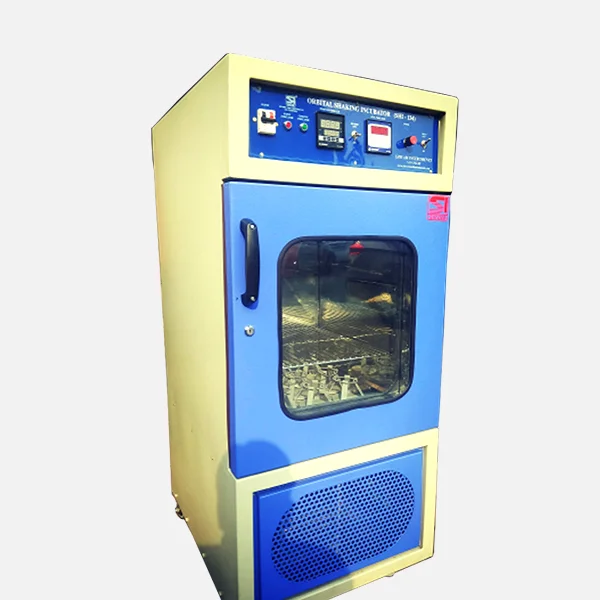

Orbital Shaking Incubator
(Cooling System)
Construction
Model NO. SHI – 134
Temperature controlled by Digital Temp. Controller cum indicator 5°to 60°C, with an accuracy of +/-0.5°C or better. Temperature below ambient is maintained by a hermetically sealed compressor with complete unit placed beneath the chamber. Shaking speed can be controlled by speed regulator and fitted with D.C. drive indicated by Digital RPM meter. Shaking platform also made of S.Steel to accommodate 16 flask of 500ml. capacity..A stainless steel perforated tray is also provided for the use of upper portion of the chamber as a simple BOD incubator. An illumination lamp is also provided inside the chamber, suitable to work on 220/230 V, 50Hz. Single phase AC supply.
SIZE AVILIABLE:
Chamber Size : 625x550x550mm to hold 16 flask of 500ml
| TEMPERATURE RANGE | +5°C to 60°C |
| TEMPERATURE ACCURACY | + / -0. 5°C |
| TEMPERATURE UNIFORMITY | + / - 1°C |
| TEMPERATURE CONTROLLER | Microprocessor based PID controller |
| TEMP DISPLAY | Digital |
| AIR CIRCULATION | 2 NOS Forced by 1/35fhp motor and blower |
| POWER | 220-230v 50Hz |
| HEATING ELEMENT | Stainless Steel |
| MOC | Exterior: MS powder coated Interior: 304 stainless steel |
| INSULATION | Glass wool/Puff |
| DOORS | Solid doors with gasket & lock |
| INNER DOOR | Glass with Aluminum Frame |
| SHELVES | 1 no of steel wire . |
| SHAKER | Rotary type shaker with lotus clamps to hold flask. |
| COOLING SYSTEM | Hermetically sealed COPELAND /KIRLOSKAR Condensing unit/compressor |
| ILLUMINATION | By LED tube |
| CONTROL PANEL | MCB, Main& Cooling ,Heating indicator, PID temp controller, Digital RPM indicator with DC drive for shaker , Speed Regulator. |
| DOOR LOCK | Provided with Lock & Key |
| OPTIONAL | Outer body of Stainless steel 212/304 Illumination by 3 nos LED tubes 0-24 Hrs Digital timer Rs-232 computer interference compatible to computer with software. NABL calibration of digital temp controller. |
